Mobile lidar (also mobile laser scanning) is when two or more scanners are attached to a moving vehicle to collect data along a path. These scanners are almost always paired with other kinds of equipment, including GNSS receivers and IMUs. One example application is surveying streets, where power lines, exact bridge heights, bordering trees, etc. all need to be taken into account. Instead of collecting each of these measurements individually in the field with a tachymeter, a 3D model from a point cloud can be created where all of the measurements needed can be made, depending on the quality of the data collected. This eliminates the problem of forgetting to take a measurement, so long as the model is available, reliable and has an appropriate level of accuracy.

Airborne lidar (also airborne laser scanning) is when a laser scanner, while attached to a plane during flight, creates a 3D point cloud model of the landscape. This is currently the most detailed and accurate method of creating digital elevation models, replacing photogrammetry. One major advantage in comparison with photogrammetry is the ability to filter out reflections from vegetation from the point cloud model to create a digital surface model which represents ground surfaces such as rivers, paths, cultural heritage sites, etc., which are concealed by trees. Within the category of airborne lidar, there is sometimes a distinction made between high-altitude and low-altitude applications, but the main difference is a reduction in both accuracy and point density of data acquired at higher altitudes.

In both the above cases, the 3D point cloud data captured is very dense and huge in size along with the photographs. The processing of processing this 3D point cloud data with the assistance of co-related photographs using high capacity workstations and suitable software’s is quite challenging. It requires expert and skilled personals with sufficient work experience for converting these 3D point cloud data to meaningful 2D and 3D Autocad or Arc GIS compatible drawings which can be used by the clients or the end users.

We at “Prashant Surveys” have developed an efficient, in-house 3D point cloud data processing team with sufficient experience and knowledge using state of the art Leica software’s and higher end workstations for delivering the output in simple Autocad or Arc GIS format.

‘Trajectory file’ generated using Mobile LiDAR ‘Leica Pegasus Two’ in ‘Waypoint Inertial Explorer’ software

‘Trajectory file’ generated using Mobile LiDAR ‘Leica Pegasus Two’ in ‘Waypoint Inertial Explorer’ software

3D Scan point cloud data of Mobile LiDAR as seen in ‘Leica Map Factory’

3D Scan point cloud data of Mobile LiDAR as seen in ‘Leica Map Factory’

Screenshot of data processing in ‘Waypoint Inertial Explorer’ & ‘Leica Auto PP’

Screenshot of data processing in ‘Waypoint Inertial Explorer’ & ‘Leica Auto PP’

Screenshot of ‘Camera data’ & ‘3D Scan point cloud data’ in ‘Leica Map Factory’

Screenshot of ‘Camera data’ & ‘3D Scan point cloud data’ in ‘Leica Map Factory’

Screenshot of ‘360 degrees panoramic camera view’ in ‘Leica Map Factory’

Screenshot of ‘360 degrees panoramic camera view’ in ‘Leica Map Factory’

Sample ‘3D plan’ prepared from Mobile LiDAR data

Sample ‘3D plan’ prepared from Mobile LiDAR data

Date Processing of Satellite Images & customized GIS solution

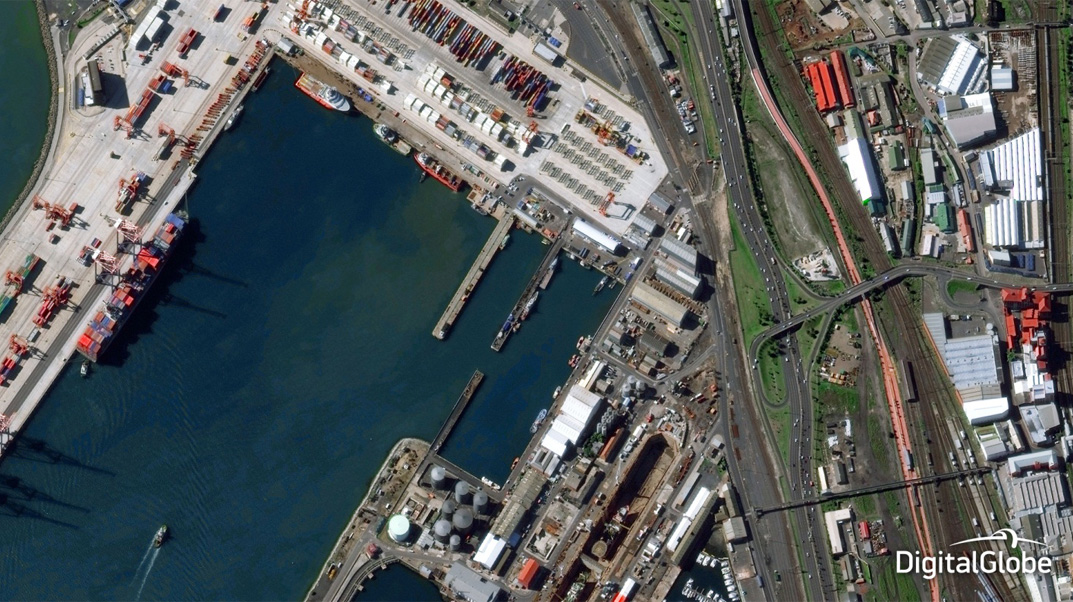

Satellite imagery consists of images of Earth or other planets collected by satellites. Imaging satellites are operated by governments and businesses around the world.

GeoEye's GeoEye-1 satellite was launched September 6, 2008. The GeoEye-1 satellite has the high resolution imaging system and is able to collect images with a ground resolution of 0.41 meters (16 inches) in the panchromatic or black and white mode. It collects multispectral or color imagery at 1.65-meter resolution or about 64 inches.

DigitalGlobe's WorldView-2 satellite provides high resolution commercial satellite imagery with 0.46 m spatial resolution (panchromatic only). The 0.46 meters resolution of WorldView-2's panchromatic images allows the satellite to distinguish between objects on the ground that are at least 46 cm apart. Similarly DigitalGlobe's QuickBird satellite provides 0.6 meter resolution (at NADIR) panchromatic images.

DigitalGlobe's WorldView-3 satellite provides high resolution commercial satellite imagery with 0.31 m spatial resolution. It also carries a short wave infrared sensor and an atmospheric sensor.

The 3 SPOT satellites in orbit (Spot 2, 4 and 5) provide images with a large choice of resolutions – from 2.5 m to 1 km. Spot Image also distributes multi resolution data from other optical satellites, in particular from Formosat-2 (Taiwan) and Kompsat-2 (South Korea) and from radar satellites (TerraSar-X, ERS, Envisat, Radarsat). Spot Image will also be the exclusive distributor of data from the forthcoming very-high resolution Pleiades satellites with a resolution of 0.50 meter or about 20 inches.

The Cartosat series of satellites are a type of earth observation satellites indigenously built by India. Up till now many Cartosat satellites have been launched by ISRO. The Cartosat series is a part of the Indian Remote Sensing Programme. They were specifically launched for Earth’s resource management and monitoring.

Indian Cartosat-2C is a much more capable satellite, having a resolution of 25 cm (10"). It uses 1.2 m optics with 60% of weight removal compared to Cartosat-2. Other features include the use of adaptive optics, acousto optical devices, in-orbit focusing using MEMs and large area-lightweight mirrors. The satellite was to be launched on board PSLV during 2014, but had been delayed and was finally launched on 22 June 2016. Potential uses include weather mapping, cartography, and strategic applications.

Cartosat-3 is an advanced Indian Earth Observation satellite built and developed by ISRO, which will replace the IRS series. PSLV C47 carrying Cartosat-3 was launched on 27 November 2019. Cartosat-3 is the 3rd generation of high-resolution imaging satellites developed by ISRO. It was developed in response to increased demand for imaging services to address urban planning, rural resource and infrastructure development needs. It has a panchromatic resolution of 0.25 meters making it the imaging satellite with highest resolution in the world and Mx of 1 meter with a high-quality resolution which is a major improvement from the previous payloads in the Cartosat series. Potential uses include weather mapping, cartography or army defense, and strategic applications.

Urban growth and change, places a heavy demand on local governments to seek better planning and management approaches. Increasing urbanization puts pressure on natural resources and existing infrastructure. Elected officials in these local governments require timely information products to support policy decisions on issues that are often interrelated and can span several political boundaries. As a result, local governments have invested considerable resources in developing Geographic Information Systems (GIS) to aid them in their planning and decision-making processes. A digital image Base Map is a key information layer in many local government GIS systems.

Traditionally only image base maps and derivative products were used by city planners and engineers for tax assessment, inventory, construction planning of roads / bridges, utility planning, storm water management, and other civil planning activities. A major hurdle to the effective application of remote sensing imagery for these applications was the positional accuracy of the image base maps and derivative products. Existing vector data layers road centerlines, parcel and zoning boundaries, etc. were routinely superimposed upon the image-based products for planning and assessment applications. Usually the vector data layers would not line up with the image products, and the products were perceived to be of limited value and were not integrated into standard operations and decision-making processes within the local government. Thus, due to the limitations of the horizontal accuracy of a remote sensing product, its utility for application in local government GIS systems as an accurate base map was very limited.

“Prashant Surveys” has the knowledge and expertise to procure, process and provide customized GIS solution or generate accurate base maps using any of the High-resolution satellite images as per the requirements of the project. We have already procured and used ‘Digital Globe’ and ‘Indian Cartosat’ High resolution satellite images from NRSC, Hyderabad (a nodal Government body under ISRO in India) for many of our Government projects in India.

Depending upon the requirements of the project, we use the appropriate high-resolution satellite images geo referenced using our high precise ground control points established by our Leica & Trimble dual frequency survey grade Differential Global Positioning System (DGPS) or GNSS systems.

After carrying out the Ortho rectification of the above High-resolution satellite images using the precise Ground Control Points, we can prepare a fairly accurate base map (upto 0.5 m accuracy) with customized GIS solution which can be readily used by small to medium sized municipal councils in India.

The base maps thus prepared for any city, urban areas or municipal council along with our customized GIS solution can be used for various applications having accuracy as that of 1:2,000 scale useful for most of the smart city, Town planning and infrastructure projects in India.
